2001 (Gottlieb) Schematics

Original Gottlieb 2001 pinball machine schematic/wiring diagram from 1970.

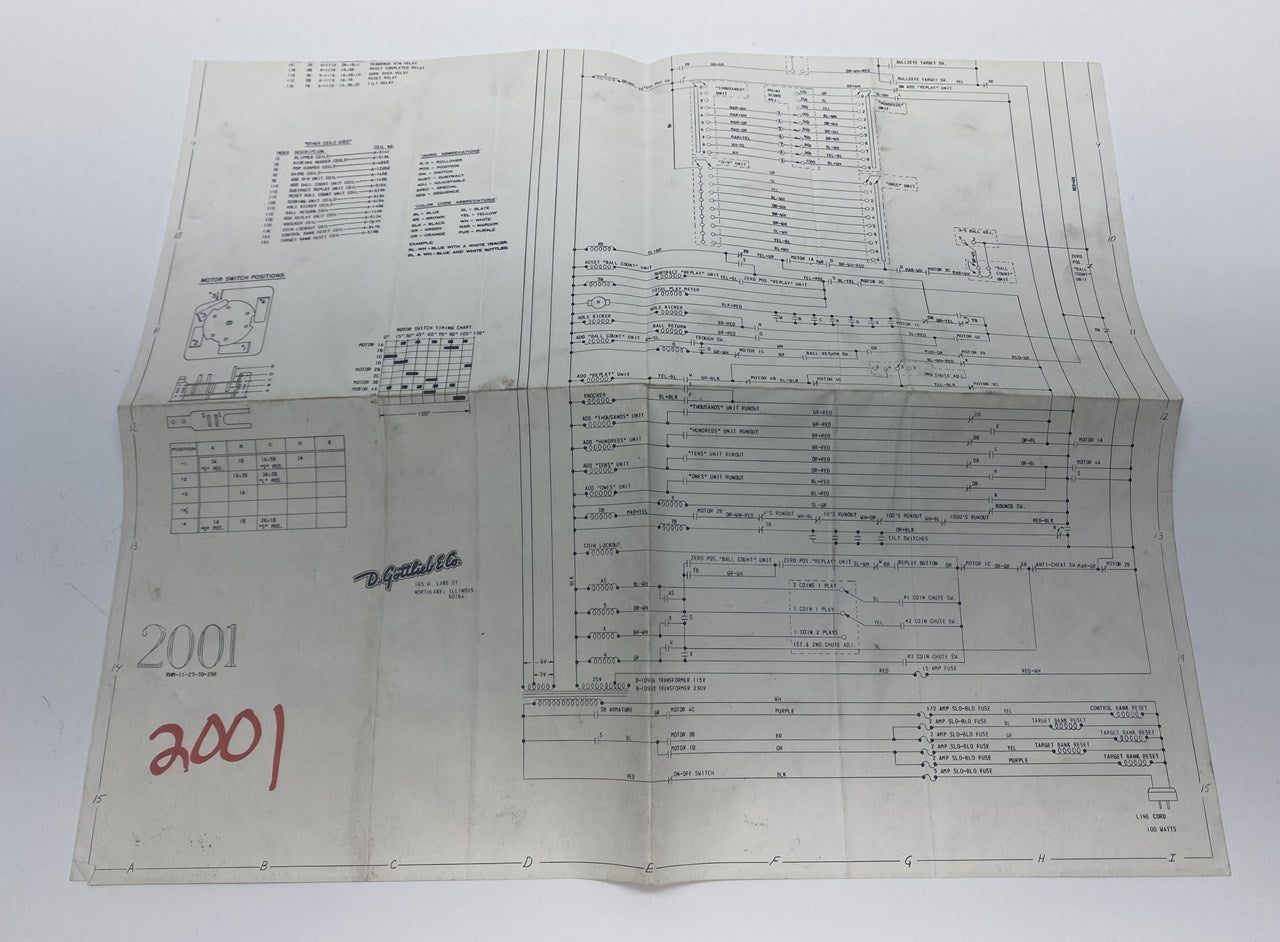

The pinball schematics we sell are generally large fold-out pages with schematics for pinball machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
