ABC Bowling Lanes (Bally)

Original Bally ABC Bowling Lanes Shuffle Alley machine schematic/wiring diagram.

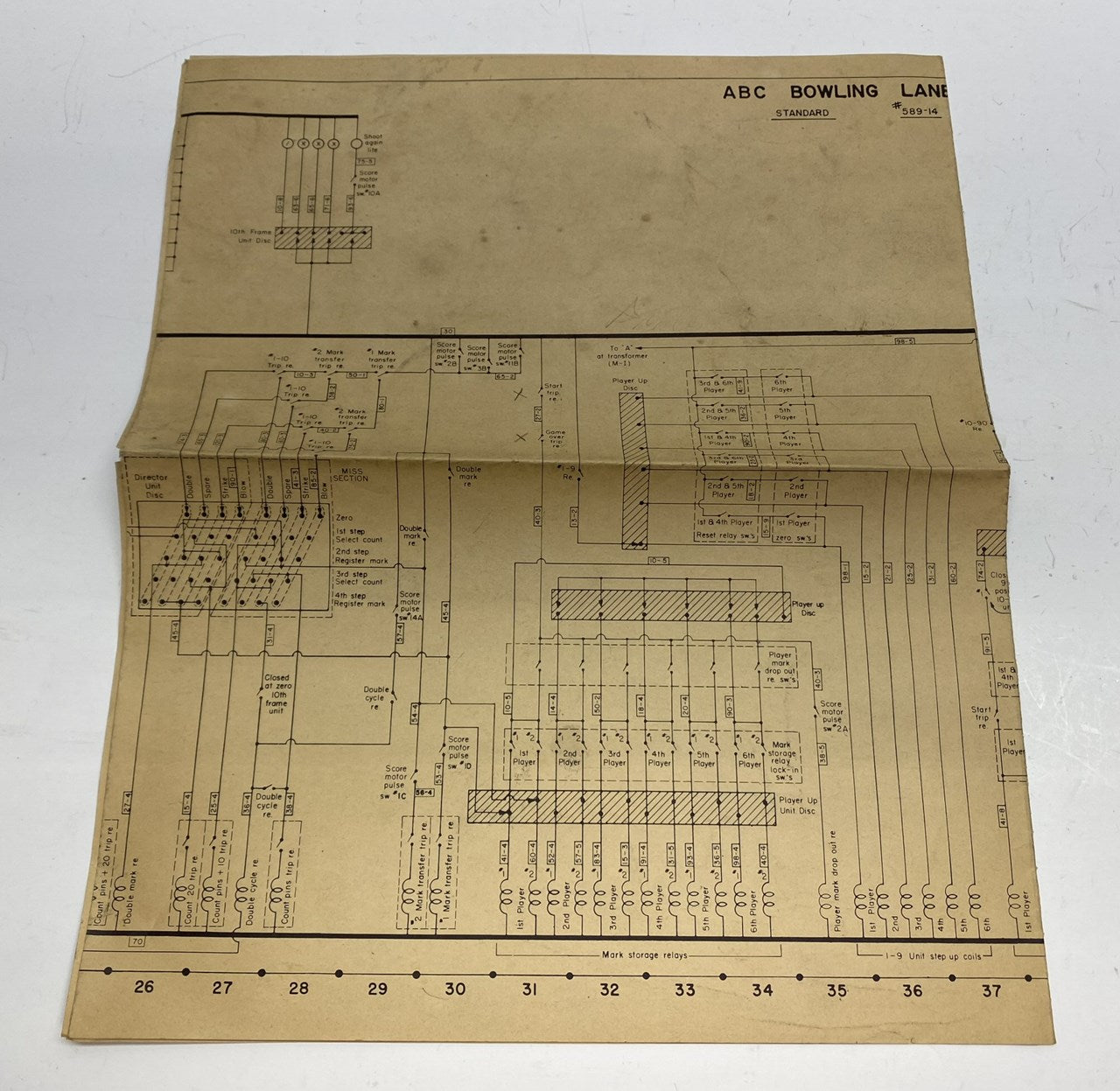

The arcade schematics we sell are generally large fold-out pages with schematics for arcade machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
