Avalon Shuffle Alley (United)

Original United's Avalon Shuffle Alley machine schematic/wiring diagram from 1962.

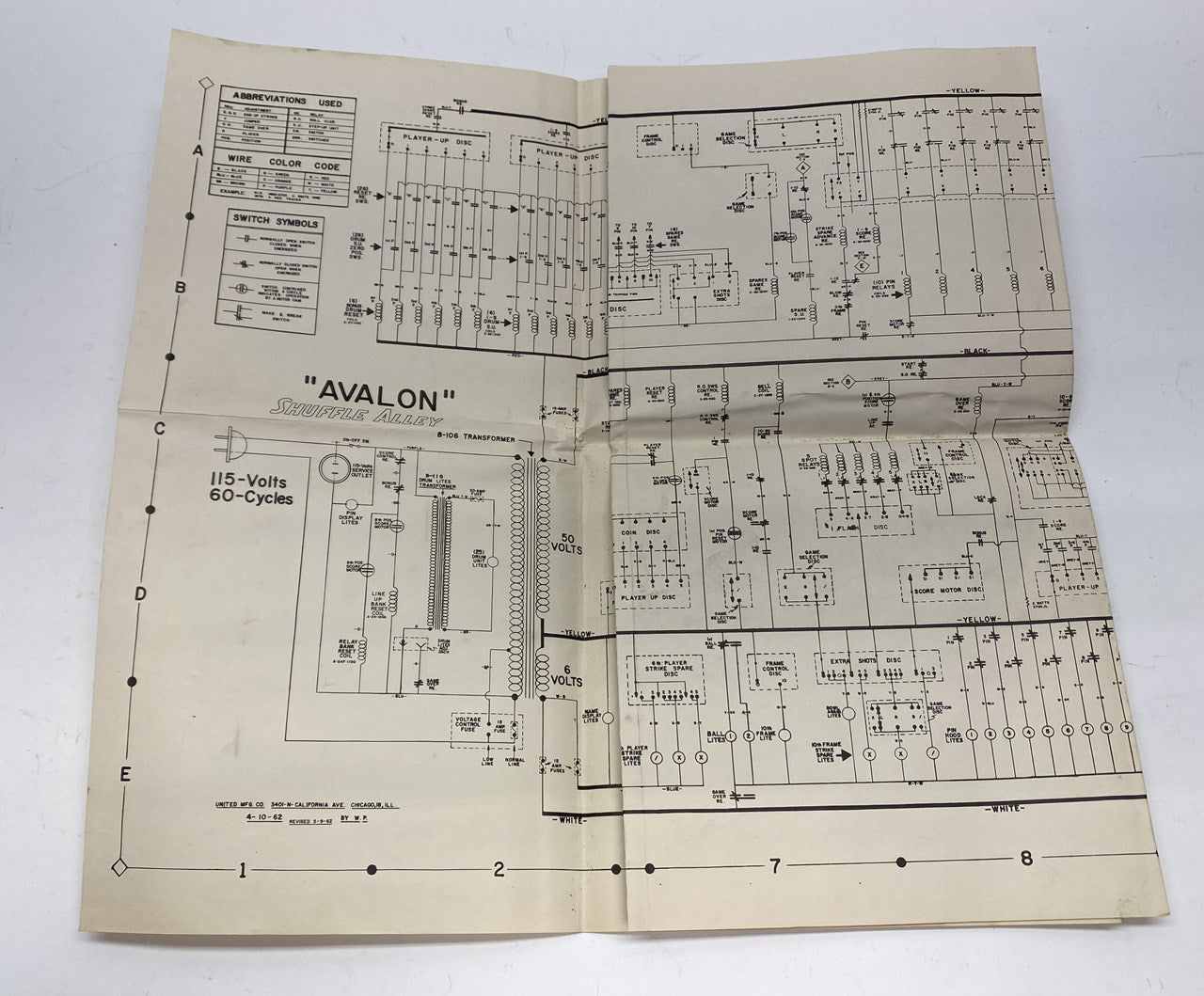

The arcade schematics we sell are generally large fold-out pages with schematics for electro-mechanical pinball machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
