Ballerina Schematics

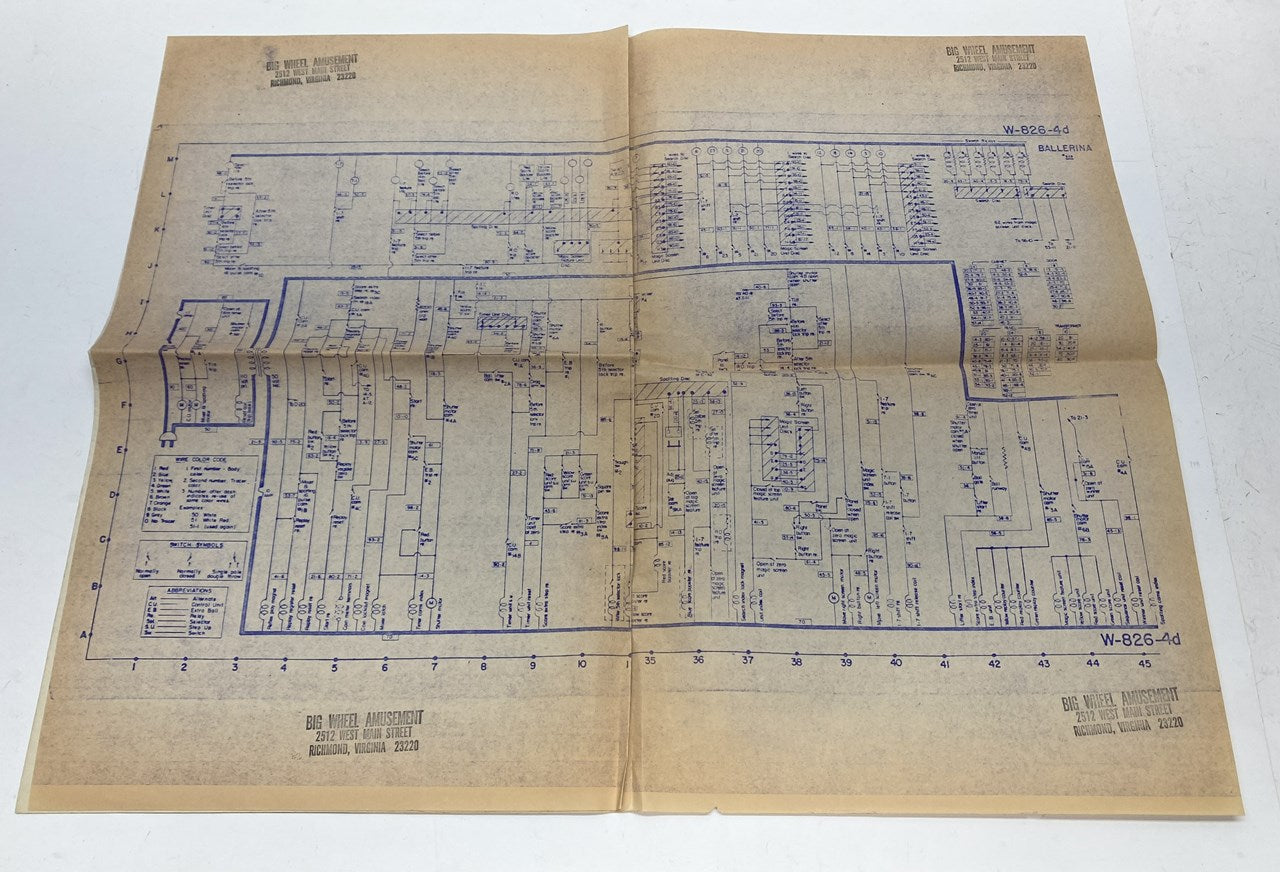

Original Bally Ballerina pinball machine schematic/wiring diagram from 1948.

The pinball schematics we sell are generally large fold-out pages with schematics for pinball machines. These are original sheets, have been stored folded and have some wear, but are still usable.
