Hot Shot (Gottlieb) Schematics

Original Gottlieb Hot Shot pinball machine schematic/wiring diagram from 1973.

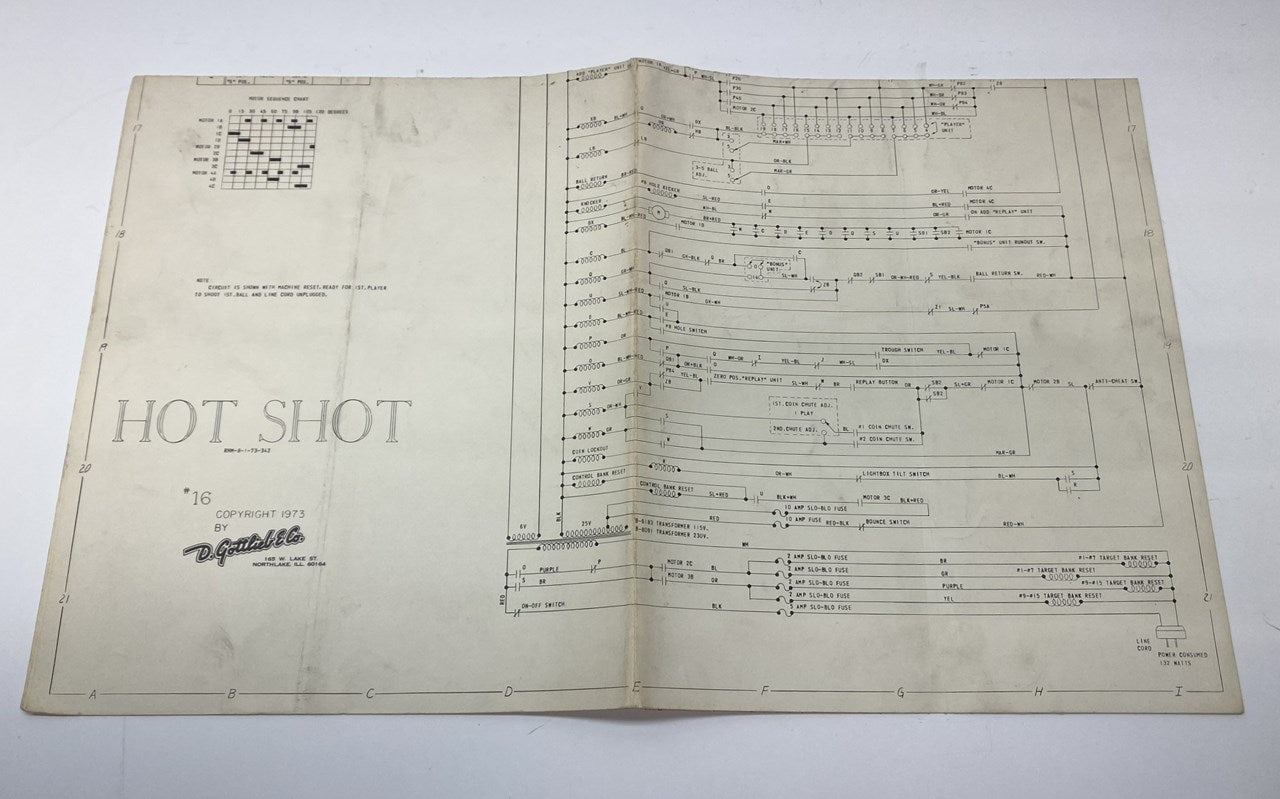

The pinball schematics we sell are generally large fold-out pages with schematics for pinball machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
