Jupiter Shuffle Alley (United)

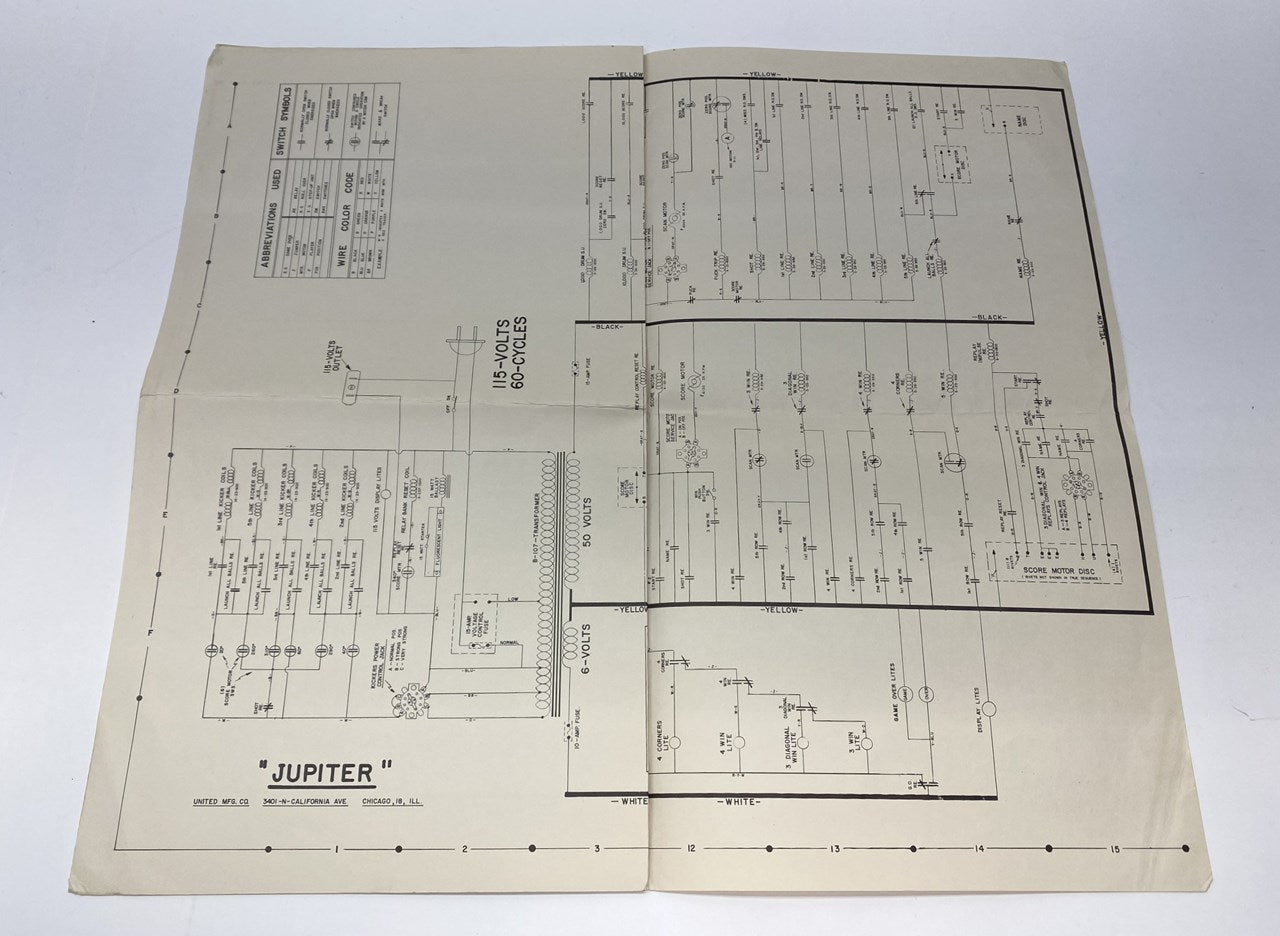

Original United's Jupiter Shuffle Alley machine schematic/wiring diagram from 1958.

The arcade schematics we sell are generally large fold-out pages with schematics for electro-mechanical pinball machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
