Sweet Hearts (Gottlieb) Schematics

Gottlieb Sweet Hearts pinball machine schematic/wiring diagram from 1963. This one may be a old copy, but it is in usable condition.

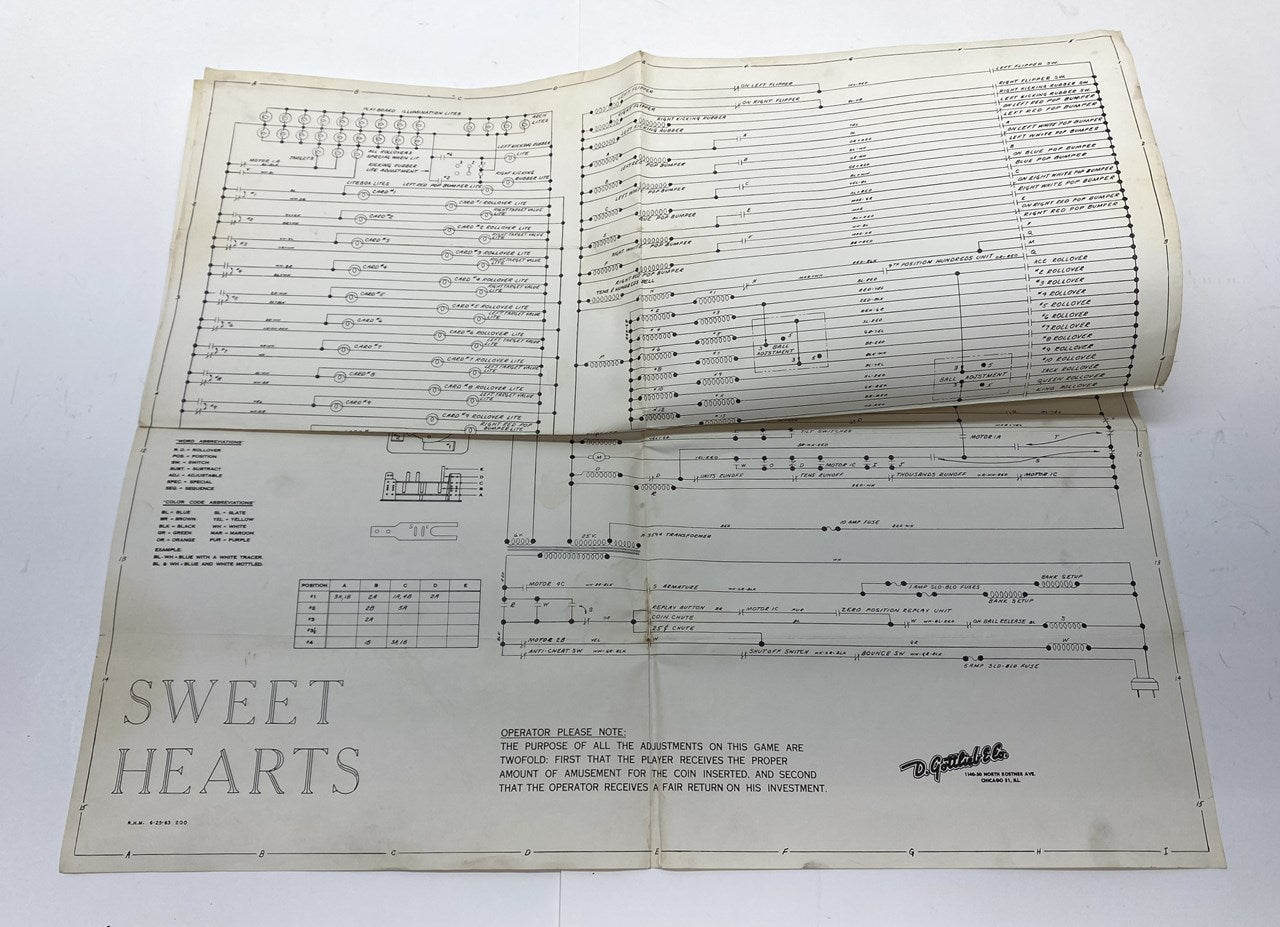

The pinball schematics we sell are generally large fold-out pages with schematics for pinball machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
