Wild Kingom (Midway) Schematics

Original Midway Wild Kingdom arcade machine schematic/wiring diagram from 1971.

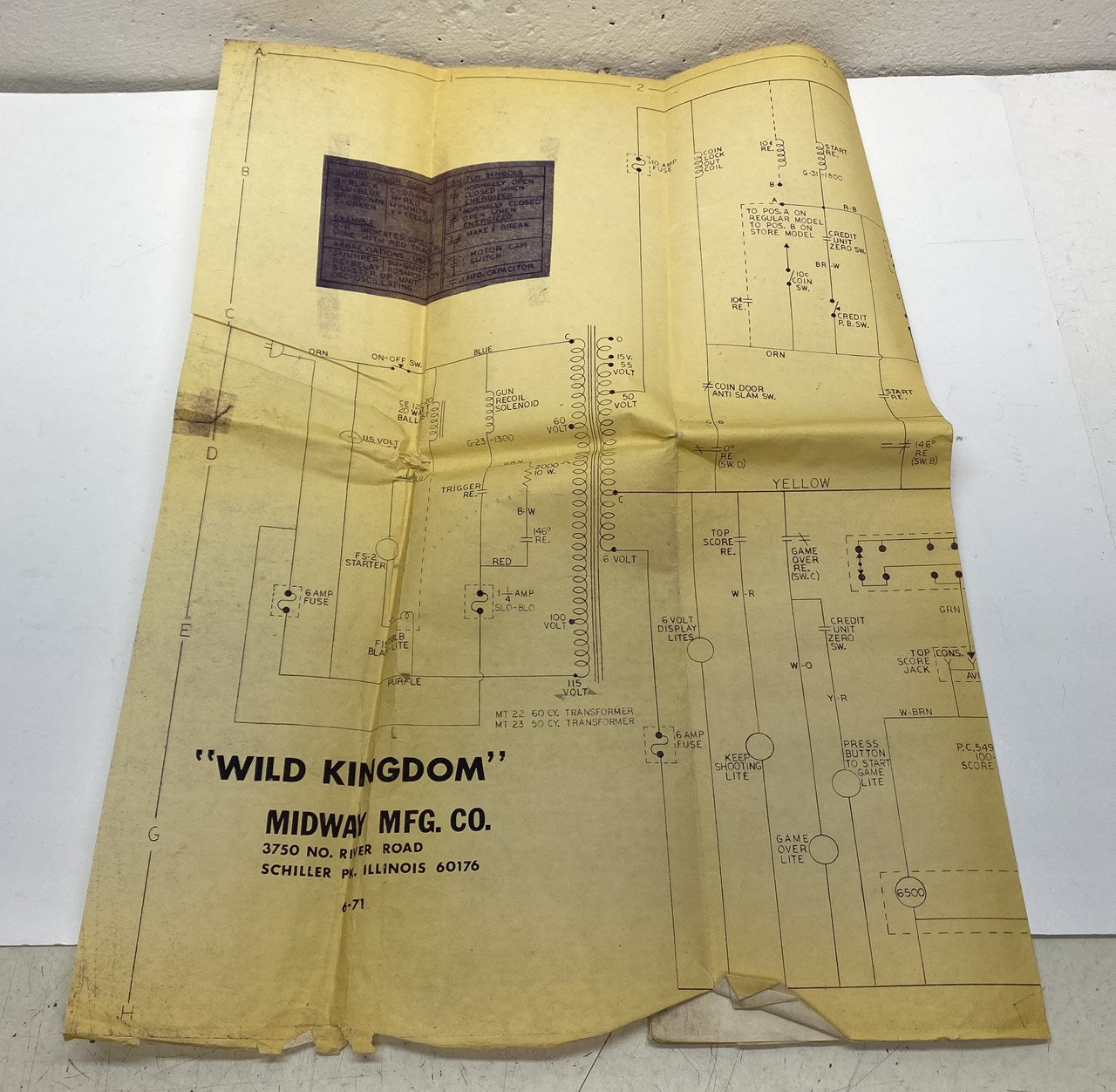

The arcade schematics we sell are generally large fold-out pages with schematics for arcade machines. These are original sheets, have been stored folded and have some wear, but are still usable. The picture below is a sample picture only.
